House Plan: 2514
Plan Specification
| Total Square Footage: | 1,943 |
| Main Level: | 1,072 |
| Second Level: | 871 |
| Bonus: | 356 |
| Bedrooms: | 3 |
| Baths: | 2 Half: 1 |
| Garages: | 3 |
| Width/Depth: | 40 ft / 52 ft |
| Foundation: | Basement, Crawlspace, Slab |
ENERGY STAR APPROVED
First Floor Plan:
Need to make changes?
© copyright by designer
Second Floor Plan:
© copyright by designer
Basement Stair Location:
Similar plans: 2553
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply
place your order, electronically sign the license
agreement, and receive your PDFs within
minutes in your inbox!
Key Features
• Attached
• Basement
• Bonus on upper floor
• Bonus Room
• Covered Front Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Front-entry
• Great Room
• Home Office
• Kitchen Island
• Laundry 2nd Fl
• Master Bdrm Upstairs
• Nook / Breakfast Area
• Open Floor Plan

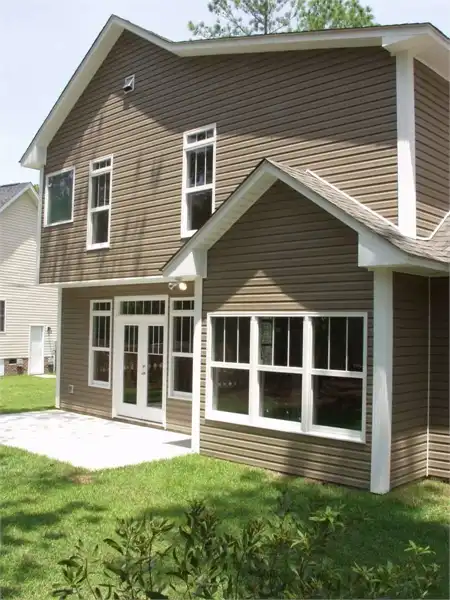

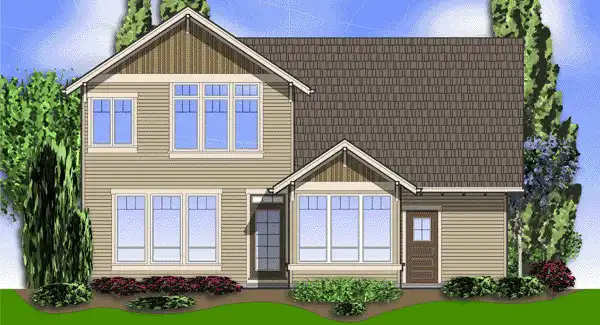

• rear view
• Separate Tub and Shower
• Slab
• Study on main floor
• Suited for narrow lot
• Tandem
• Upstairs utility
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
• Workshop
Plan Details
General House Information
2
Number of Stories:
40' 0"
Width:
52' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Bungalow
Country
Craftsman
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,072 Sq. Ft.
Main Level:
871 Sq. Ft.
Upper Level:
1,943 Sq. Ft.
Total:
Unfinished Square Footage
610 Sq. Ft.
Garage:
120 Sq. Ft.
Porch:
356 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
3
Garage Size:
Foundation
Basement
Crawlspace
Slab
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
25' 2"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
25
Live:
15
Dead:
0
Wind:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
