House Plan: DFD-8690

Pin It

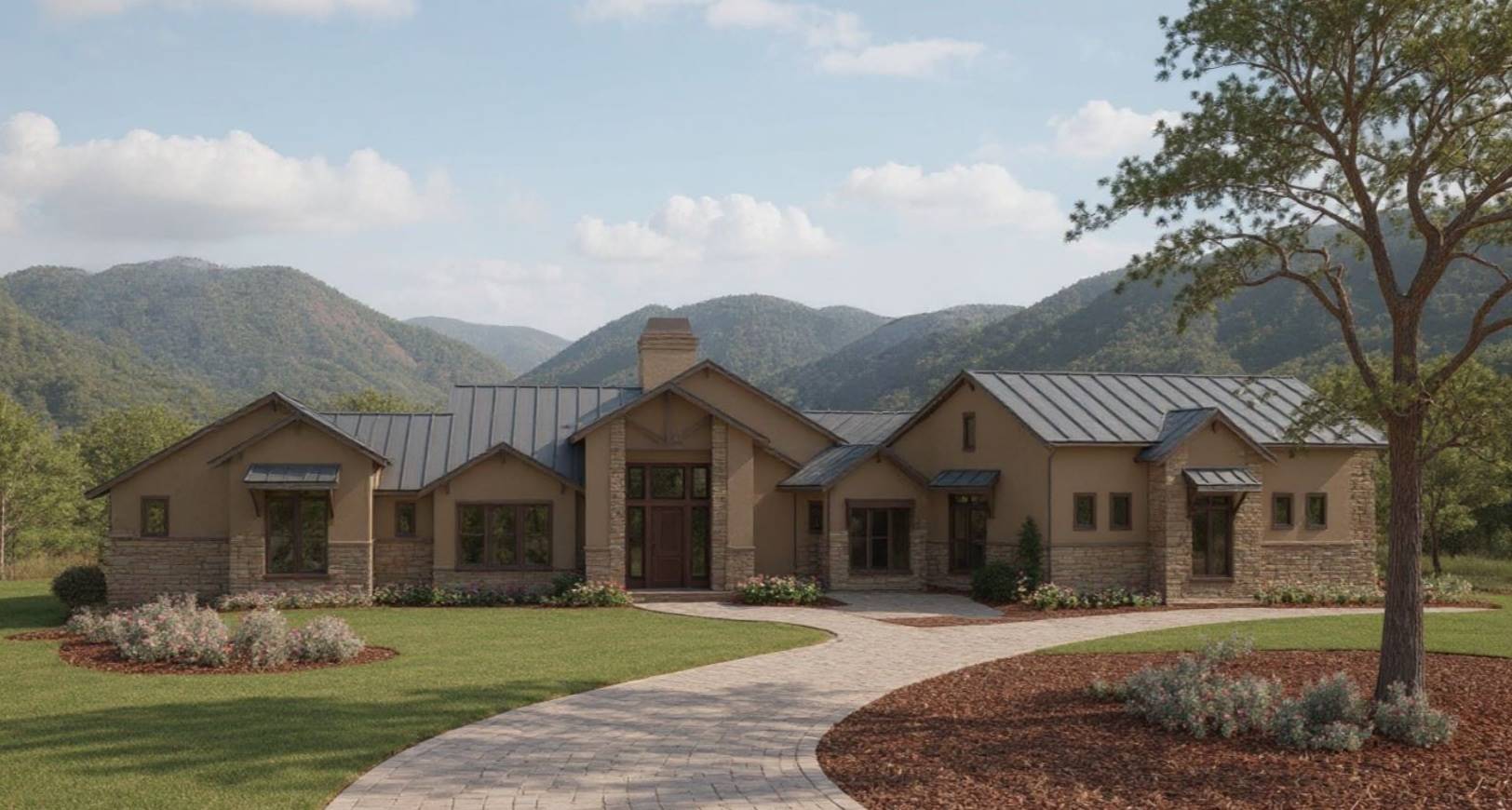

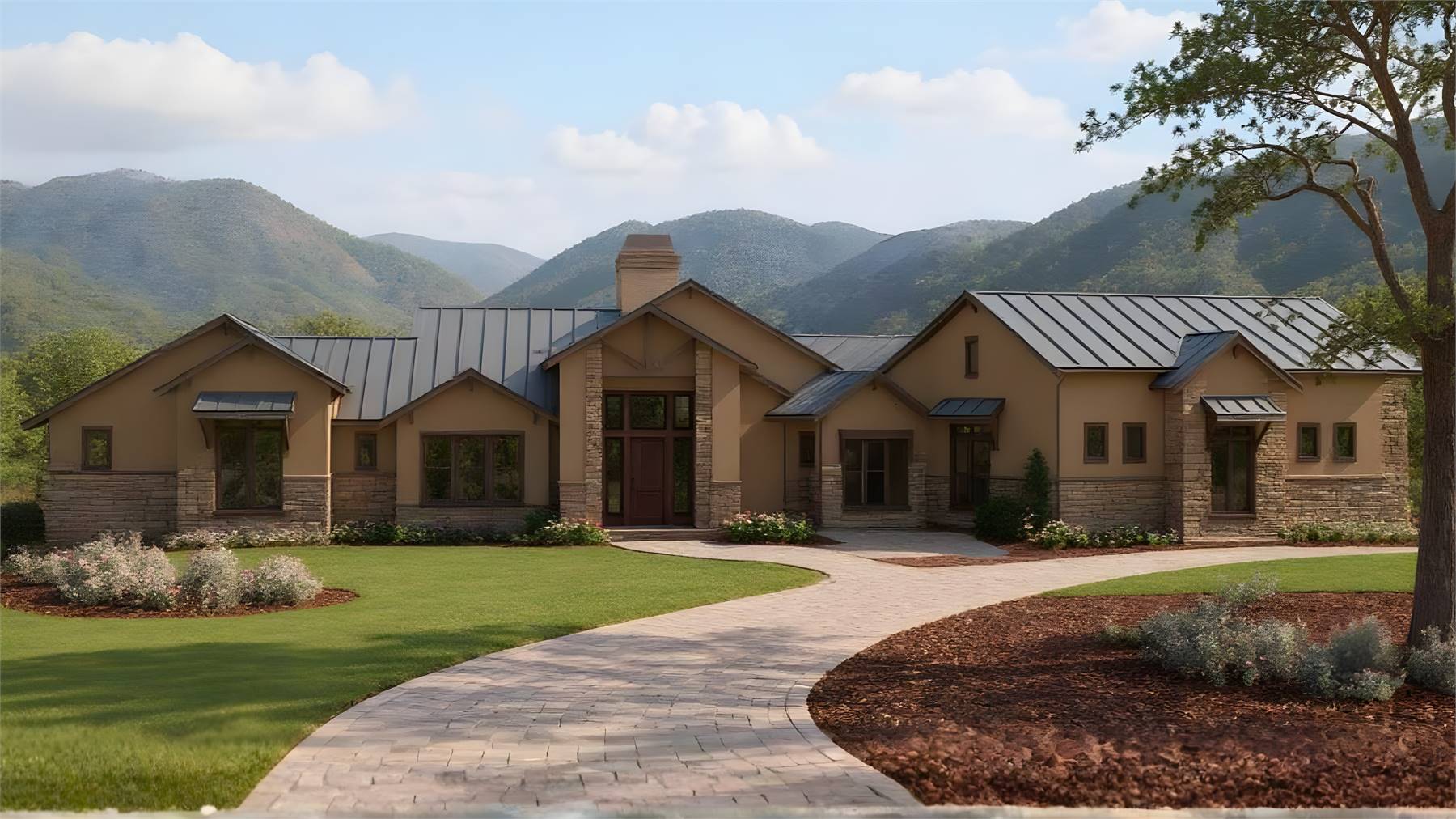

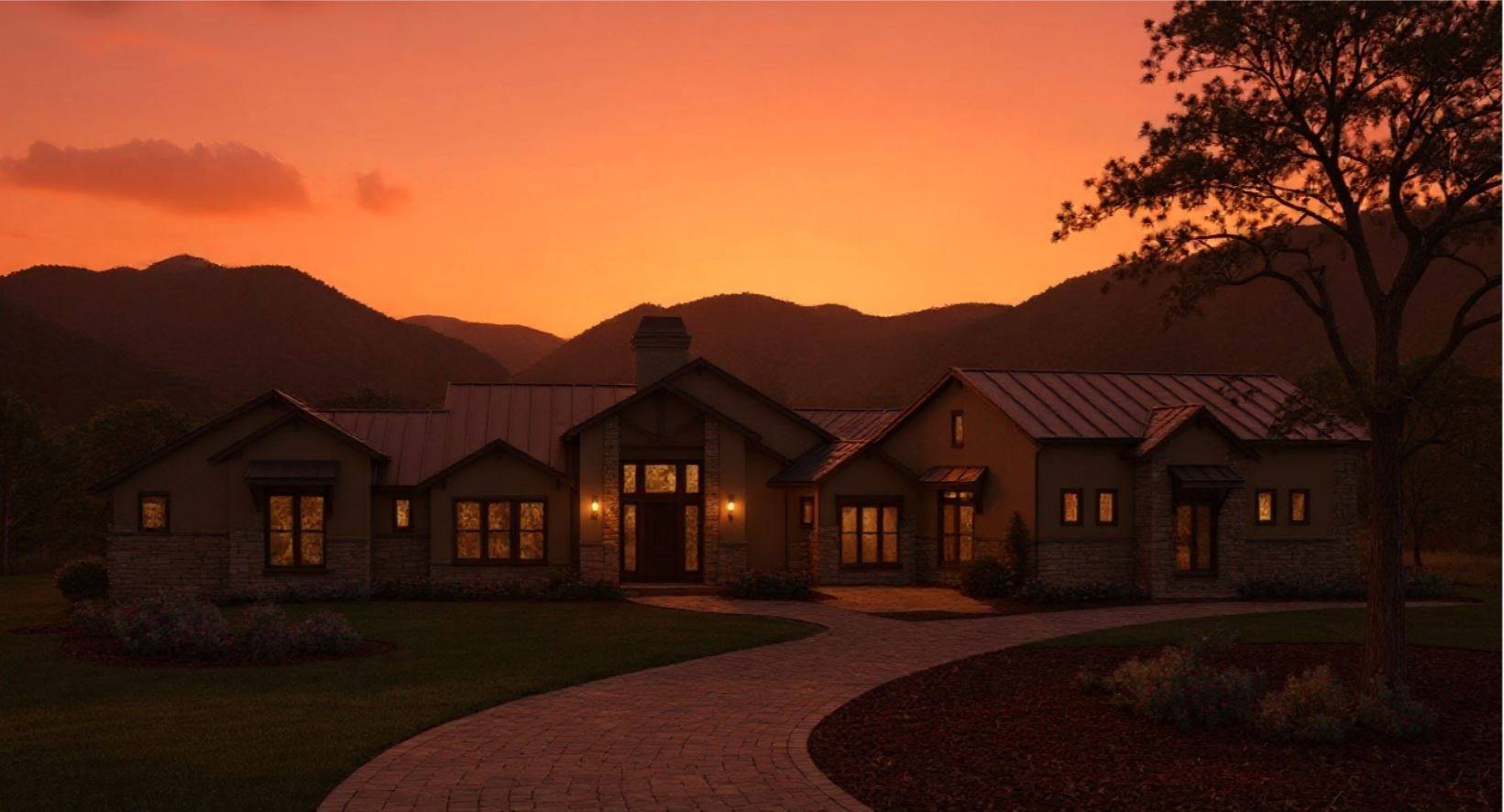

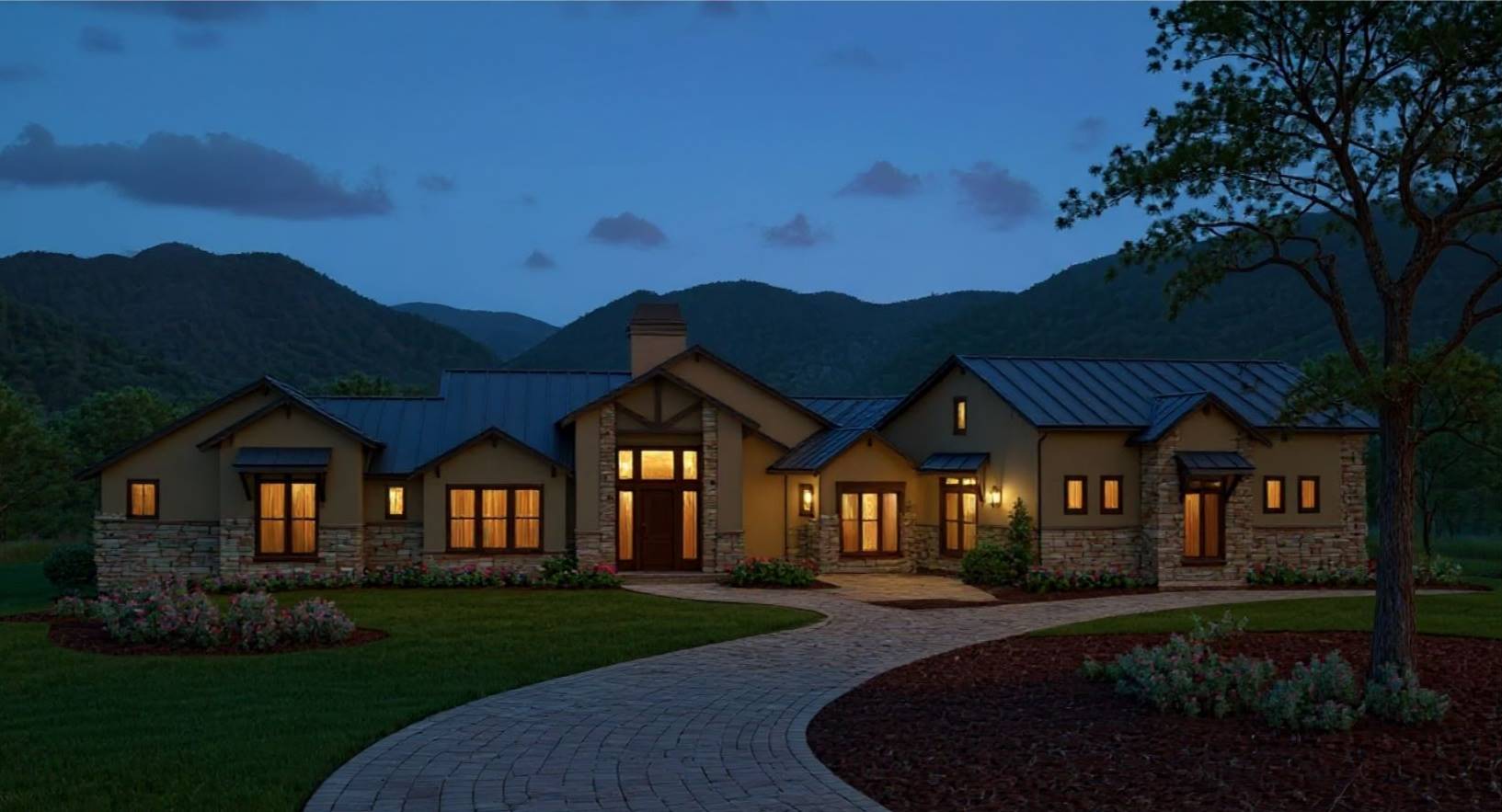

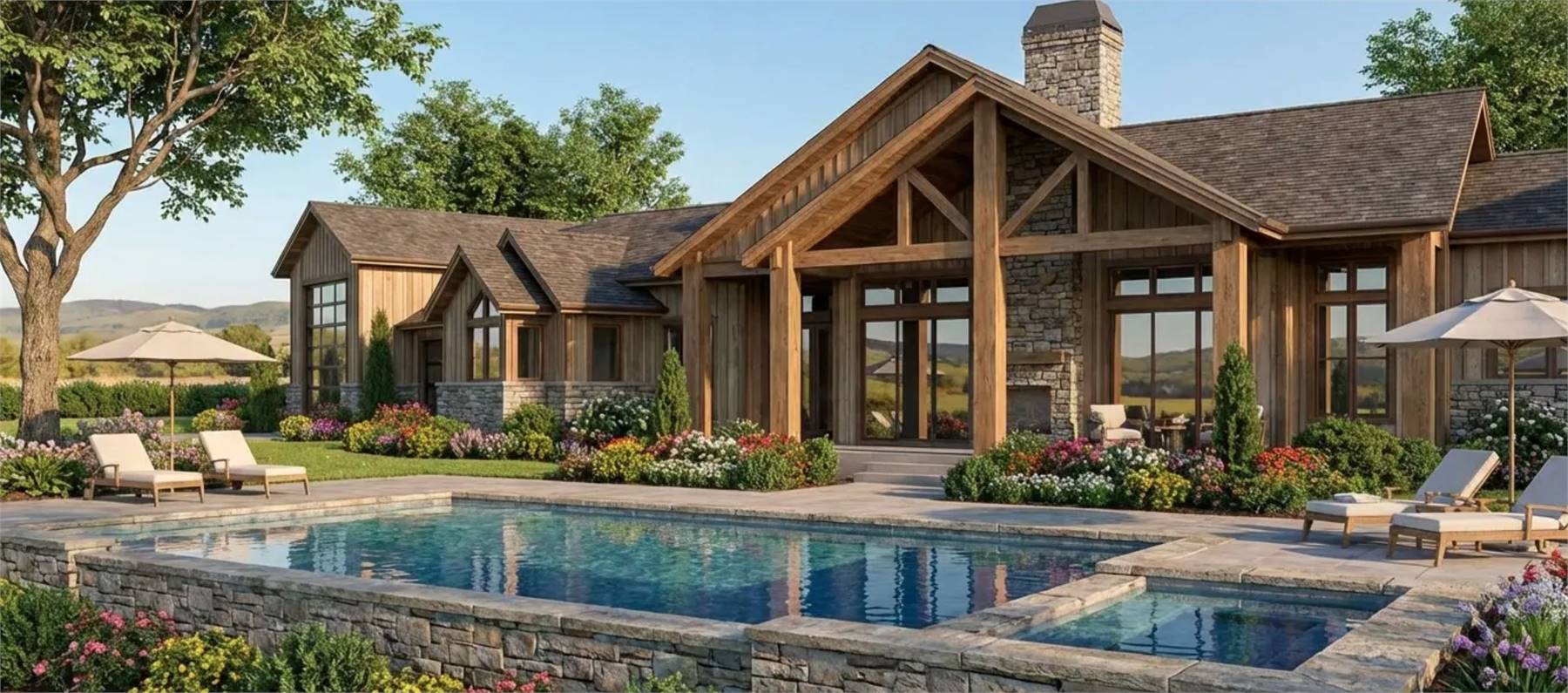

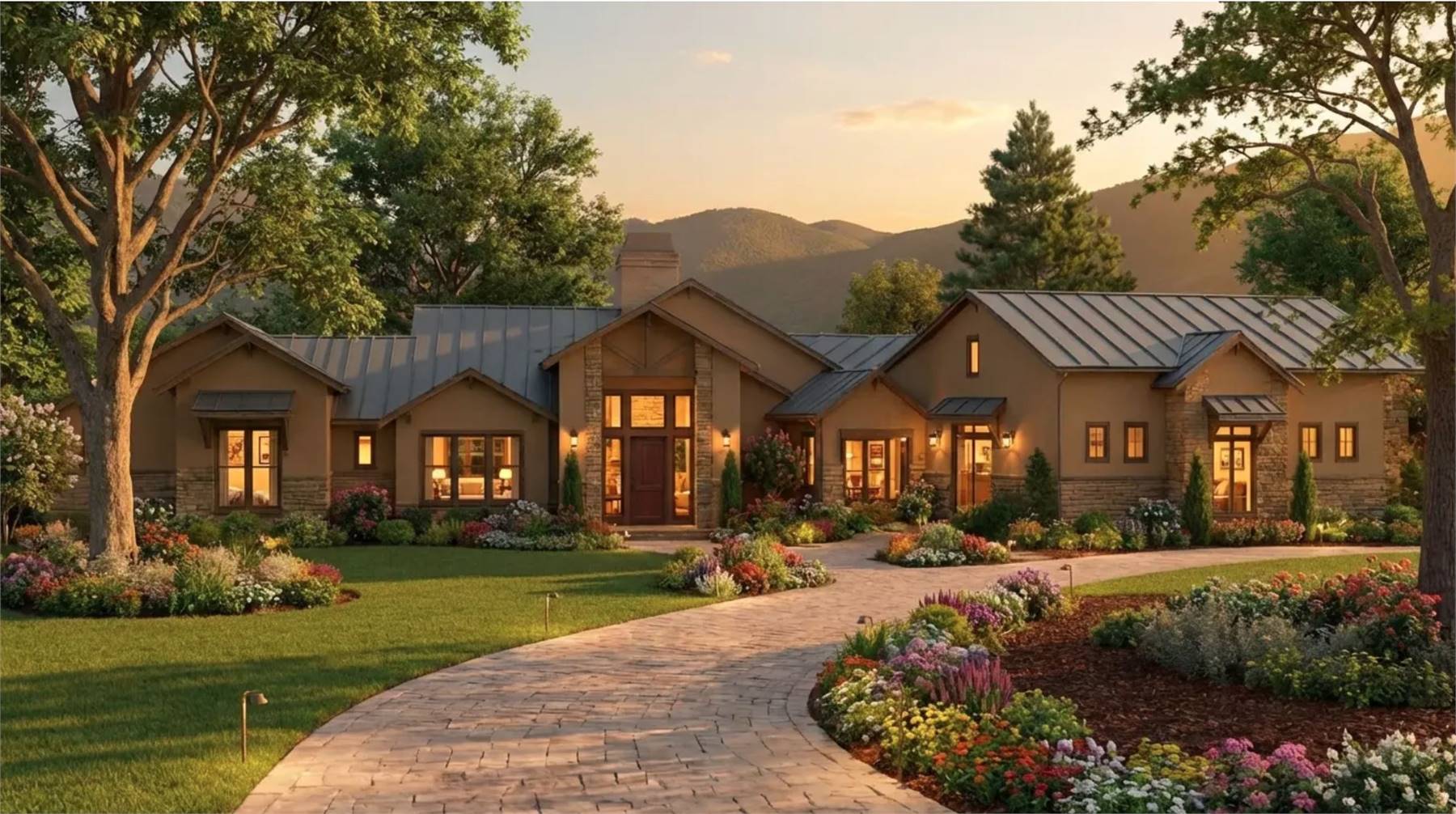

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,690
BEDS
3
BATHS
3.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,220.00
For questions and help, live chat, email or call us at 877-895-5299

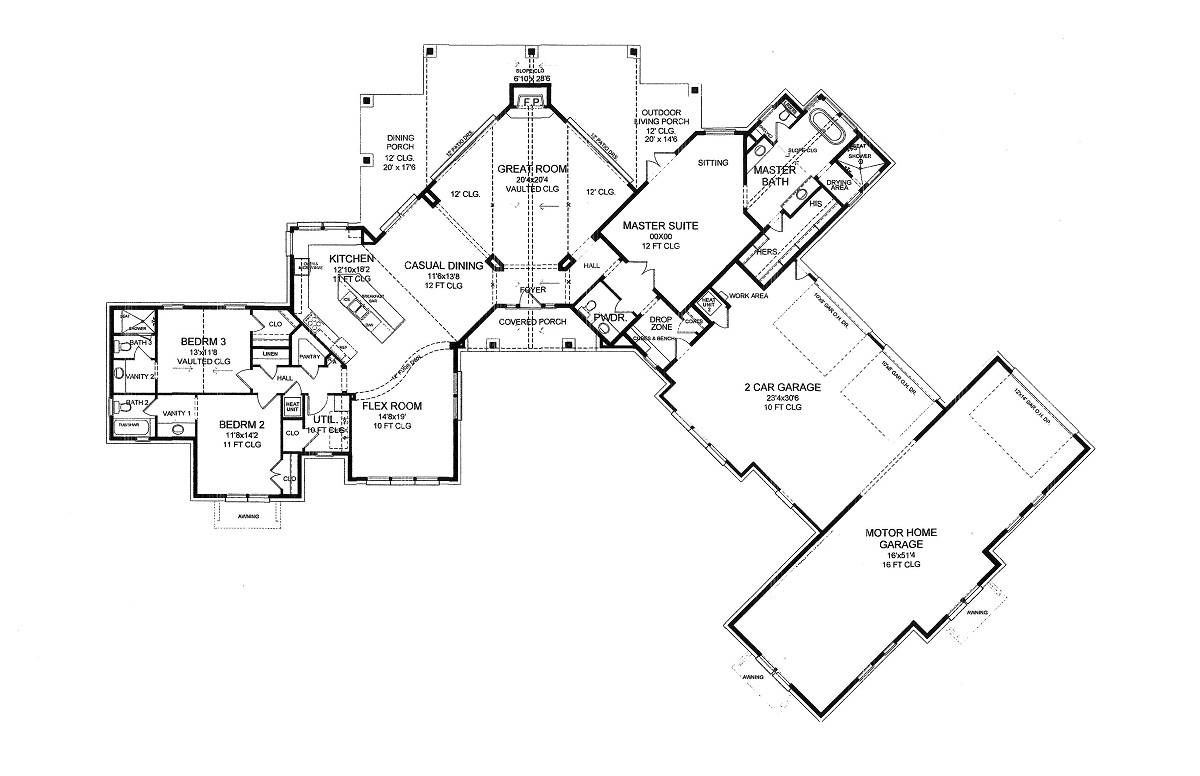

1st Floor

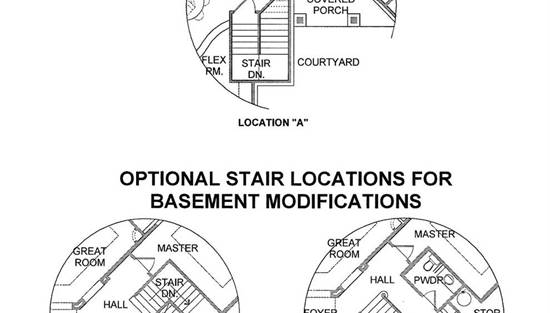

Staircase Options
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8690:
Check out House Plan 8690 if you're looking for a unique home with RV parking! This V-shaped Southwestern ranch offers 2,690 square feet with three bedrooms, three-and-a-half bathrooms, and a three-car garage with two single bays and an RV bay. The layout is designed around a corner great room with a centered fireplace. You'll find plenty of counterspace in the kitchen and room to dine and play in the dining and flex areas. The bedrooms are split on opposite sides of the house, with the luxurious primary suite near the garage while two smaller suites enjoy easy access to the laundry room.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,150
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,525
Most recommended package

Multi-Use PDF

Two Builds Only
Multi-Use PDF $1,995
Two Builds Only

CAD + PDF Single Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,995
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1525
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,690 Sq. Ft.
Main Level:
2,690 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
134'
Width:
91'
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1845 Sq. Ft.
Garage:
677 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Country
Lake
Ranch
Southwest
Collections
Kitchens
Primary Suites
Mountain
Open Floor Plan
OtherCustom
Outdoor Living
Split Bedroom
Vacation
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
House And Ceiling Heights
11
First Floor Ceiling:
Key Features
Attached
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Outdoor Living Space
Peninsula / Eating Bar
Rear-entry
RV Garage
Separate Tub and Shower
Sitting Area
Split Bedrooms
Suited for view lot
U-Shaped
Vaulted Ceilings
Vaulted Foyer
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
Workshop
Wraparound Porch
